1500KVA Natural Gas Generator Baudouin Engine
1500KVA Natural Gas Generator Baudouin Engine 1500KVA Natural Gas Generator Baudouin Engine
Contact Now

1500KVA Natural Gas Generator Baudouin Engine

Minimum Order Quantity : 1 Set Price : $391,599.00 - $432,199.00/Sets
Packaging Details : Seaworthy packing. Delivery Time : 45 days
Supply Ability : 20 Sets/month
Place of Origin: China Brand Name: Baudouin
Certification: ISO9001 Model Number: 1500KVA

Detail Information
Description: 1500KVA Natural Gas Generator Power: 1500KVA
Engine Brand: Baudouin Engine Type: Natural Gas
Engine Power: 1650KVA Frequency: 50Hz
Type: Silent Type Compressure Ratio: 12.5
High Light:

56T bitcoin maker machine

,

Whatsminer M21S bitcoin maker machine

,

3360W crypto mining equipment

Product Description

1500KVA Natural Gas Generator Baudouin Engine



Power Definition and Operation Conditions for 1500KVA Natural Gas Generator Baudouin Engine



Type of Power Operational Conditions

Continuous Power

COP

1. Unlimited running time;

2. Operated with stable 100% load;

3. No overload capacity.
Standby Power ESP

1. Annual operation time shall be within 200 hours;

2. Running for more than 24 hours, average load shall not beyond 70%;

3. No overload capacity.
Note: Engines are not allowed to run more than above requirements.





Other Requirement for 1500KVA Natural Gas Generator Baudouin Engine



If natural gas is not as stipulated, there will be power loss for engine and life time of engine will be effected. Extra heat value won’t improve engine power. However, limited heat value will cause loss of engine power. If heat value is less than 28MJ/m³ and CH4 content is lower than 60%, the engines can’t work properly.



1500KVA Natural Gas Generator Baudouin Engine Technical Parameter & Specification

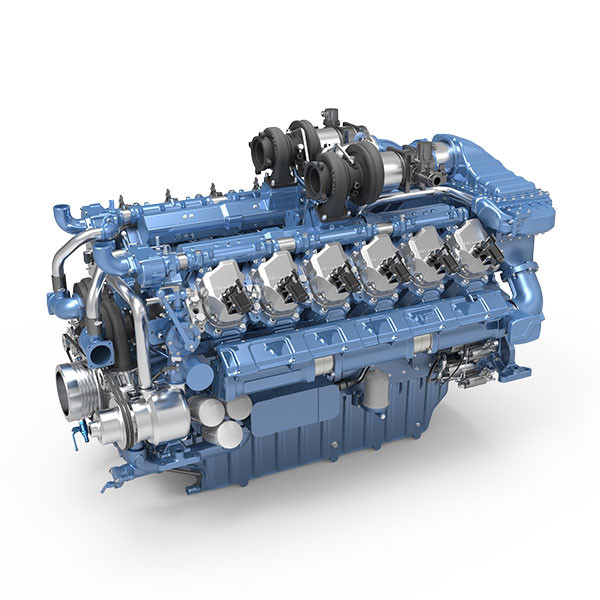

Engine Model EB16V150 1280N6
Type V type, 16 cylinders, electrical speed governing, each cylinder independent ignition, turbocharge and inter-cooling
Number of Cylinder-Cylinder ID-Stroke Distance (mm) 16-150×185
Displacement (L) 52.3
Compression Ratio 12.5
Sequence of Ignition B3-B5-A3-A5-B2-A6-B1-B7-A1-A7-B4-B6-A4-B8-A2-A8
Mode of Starting Electrical starting
Rotation Direction Anticlockwise (see from output end)
(COP)/rpm( kW/r/min) 1280kW/1800r/min
Prime Power(PRP)/rpm( kW/r/min) /
Backup Power (ESP) /rpm( kW/r/min) /
Idling(r/min) 700-750
Engine Control System WOODWARD latest generation
Ignition System HOERBIGER smart ignition
Turbocharger ABB High Efficiency Turbocharger
Speed Adjust Mode Electrical
Steady State Speed Regulation ≤3%
Natural Gas Consumption(MJ/kW·h) 8.8
Net Weight of Engine (kg) 5300
Engine Thermal Efficiency Valid Thermal Efficiency≥41% (As per ISO3046 Standard)

Notes:

1) Rated Power tolerance ±3%;

2) Rated operation condition natural gas consumption tolerance ±5%;

3) Rated operation condition rotation speed fluctuation ±0.5%.




Air Intake & Exhaust System, Cooling System



Air Filter Intake Air Requirement (m3/h) 6034 Equipped
Original Resistance ≤3.5kPa
Filtering Efficiency ≥99%
Inter-cooler Structure Mode Water-air Inter-cooler Equipped
Intercooling Low Temperature Water Radiation Rated Cooling Power 311kW Optional
Inlet/Outlet Water Temperature 45℃/50℃
Low Temperature Water Pump Equipped with Engine/ Mechanical Drive
Jacket High Temperature Water Radiator Inlet/Outlet Water Temperature 80℃/90℃ Optional
Rated Cooling Power 597kW
Water Pump Equipped with Engine/ Mechanical Drive
Muffler Exhaust Back Pressure ≤5kPa Equipped
Muffler inlet/outlet Dimension 2×DN250
