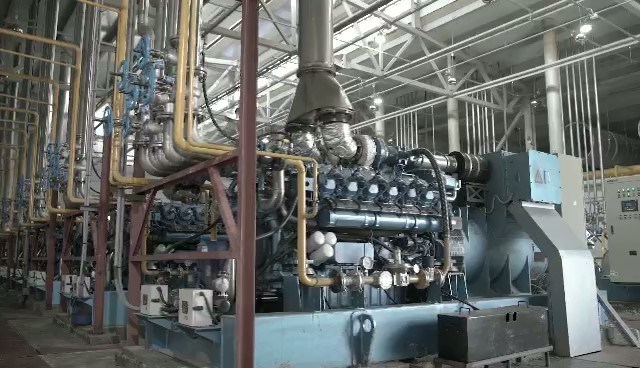

1500KVA Natural Gas Silent Power Generator

Name: 1500KVA Natural Gas Silent Power Generator
Brand: Baudouin
SKU: 12M55
Price: 381 USD
Availability: InStock
Rating: 4.9 (171 reviews)

Minimum Order Quantity :	1 Set	Price :	$381,165.00 - $425,216.00/Set
Packaging Details :	Seaworthy packing.	Delivery Time :	45 days
Supply Ability :	20 Sets/month

Place of Origin:	China	Brand Name:	Baudouin
Certification:	ISO	Model Number:	12M55

Detail Information
Description:	1500KVA Natural Gas Generator	Power:	1500KVA
Frequency:	50Hz	Voltage:	230V 400V
Engine Type:	Natural Gas Engine	Brand:	Baudouin WeiChai
Displacement:	59.3L	Power Factor:	0.8
High Light:	microbt whatsminer m21s 56t , 2160W microbt whatsminer m21s 56t , CE asic bitcoin miner

Product Description

1500KVA Natural Gas Silent Power Generator

Technical Specification of 1500KVA Natural Gas Silent Power Generator Gas Engine

Engine Model	EB16V150 1280N6
Type	V type, 16 cylinders, electrical speed governing, each cylinder independent ignition, turbocharge and inter-cooling
Number of Cylinder-Cylinder ID-Stroke Distance (mm)	16-150×185
Displacement (L)	52.3
Compression Ratio	12.5
Sequence of Ignition	B3-B5-A3-A5-B2-A6-B1-B7-A1-A7-B4-B6-A4-B8-A2-A8
Mode of Starting	Electrical starting
Rotation Direction	Anticlockwise (see from output end)
(COP)/rpm( kW/r/min)	1280kW/1800r/min
Prime Power(PRP)/rpm( kW/r/min)	/
Backup Power (ESP) /rpm( kW/r/min)	/
Idling(r/min)	700-750
Engine Control System	WOODWARD latest generation
Ignition System	HOERBIGER smart ignition
Turbocharger	ABB High Efficiency Turbocharger
Speed Adjust Mode	Electrical
Steady State Speed Regulation	≤3%
Natural Gas Consumption(MJ/kW·h)	8.8
Net Weight of Engine (kg)	5300
Engine Thermal Efficiency	Valid Thermal Efficiency≥41% (As per ISO3046 Standard)
Notes: 1) Rated Power tolerance ±3%; 2) Rated operation condition natural gas consumption tolerance ±5%; 3) Rated operation condition rotation speed fluctuation ±0.5%.

Air Intake & Exhaust System, Cooling System of

1500KVA Natural Gas Silent Power Generator

Air Filter	Intake Air Requirement (m3/h)	6034	Equipped
	Original Resistance	≤3.5kPa
	Filtering Efficiency	≥99%
Inter-cooler	Structure Mode	Water-air Inter-cooler	Equipped
Intercooling Low Temperature Water Radiation	Rated Cooling Power	311kW	Optional
	Inlet/Outlet Water Temperature	45℃/50℃
	Low Temperature Water Pump	Equipped with Engine/ Mechanical Drive
Jacket High Temperature Water Radiator	Inlet/Outlet Water Temperature	80℃/90℃	Optional
	Rated Cooling Power	597kW
	Water Pump	Equipped with Engine/ Mechanical Drive
Muffler	Exhaust Back Pressure	≤5kPa	Equipped
Muffler	Muffler inlet/outlet Dimension	2×DN250	Equipped
