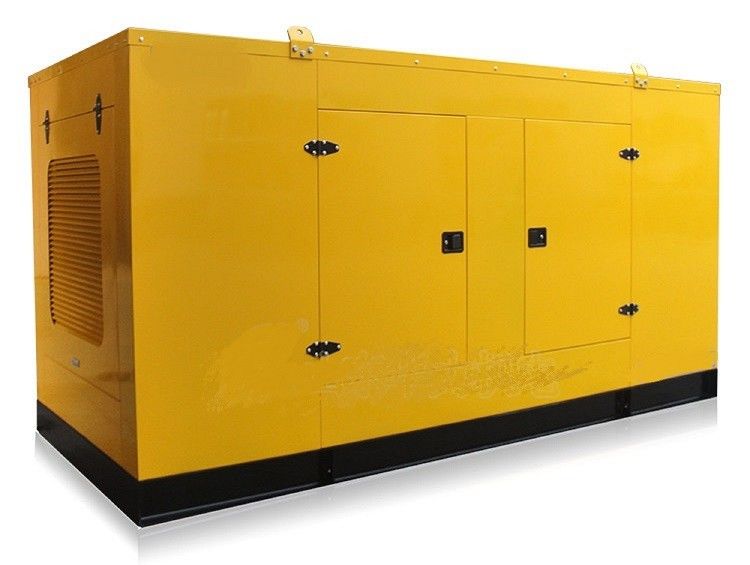

300kW Diesel Silent Power Generator With Soundproof Canopy
300kW Diesel Silent Power Generator With Soundproof Canopy 300kW Diesel Silent Power Generator With Soundproof Canopy
Contact Now

300kW Diesel Silent Power Generator With Soundproof Canopy

Minimum Order Quantity : 1 Set Price : $380,000.00-$47,000.00
Packaging Details : Seaworthy packing. Delivery Time : 10 Days
Supply Ability : 50 Sets/Month
Place of Origin: China Brand Name: Starlight
Certification: ISO Model Number: 300kW

Detail Information
Description: Diesel Generator Type: Soundproof
Power: 300kW Voltage: 230V 400V
Frequency: 50/60Hz Engine: YuChai Or Others
Alternator: Kwise Warranty: 1 Year
Port: China
High Light:

Diesel Silent Power Generator

,

300kW Silent Power Generator

,

Soundproof Canopy Diesel Generator

Product Description

300kW Diesel Generator With Soundproof Canopy



Our 300kW Diesel Generator With Soundproof Canopy diesel generator open type uses top Chinese engines and alternators to ensure its supreme quliaty, perforemance and to achieve economy at the same time.



Our diesel generators are sold all over the world and have won good fame from our clients.



Technical Specification of 300kW Diesel Generator With Soundproof Canopy



300kW Diesel Generator With Soundproof Canopy
Power(kW) 300
Output Capacity(kVA) 375
Power Factor 0.8(Lag)
Frequency (Hz) 50
Voltage(V) 400/230
Maximum Current(A)
Generator Dimensions(L*W*H)(mm) 3000*1100*1900
Total Net Weight(kg) 2800
Diesel Engine
Manufacturer Guangxi YuChai
Model YC6MJ500L-D21 Rated RPM(RPM) 1500
No. Of Cylinder 6 Engine Power(kW) 330/367
Cylinder Arrangement In-Line Fuel Grade 0# (Light Diesel)
Bore/Stroke(mm) 131/145 Fuel Consumption(g/kw.h) ≤195
Pressure Ratio 17.5:1 Lubricant Volume(L) 28
Air Suction Turbocharging Max. Temperature of Lubricant(℃) 121
Speed Regulating Electrical Max. Exhaust Temp(℃) 380/410
Max. Back Pressure Allowed(kPa) 7.5 Displacement(L) 11.726
Cooling Air cooling, can work under 40C ambient temperature. Coolant Volume (L) 54
Alternator
Manufacturer QuanYI
Model QYI6E Current(A)
Exciting Mode Brushless Self excitation Capacity(KVA) 375
Voltage Adjust Range ≥±5% Voltage Control Mode AVR
Steady state voltage regulation rate ±1.0% Transient voltage regulation ±10%
Steady state Frequency regulation rate ≤1% IP Grade IP21
Insulation Grade H Grade Efficiency 93.5%




About Starlight



Starlight is a company dedicating itself to power technology and equipment, especially for new and green power equipment.

We have traditional diesel and gasoline power generators. In the last few years, we focused on gas power technology which is green, clean and more friendly than traditional power equipment.



We know that the next generation of power will be totally green and clean and we also working on new generation of power technology.



300kW Diesel Generator With Soundproof Canopy





The canopy is soundproof type and noise will be within 75dB at 7 meters' distance.
