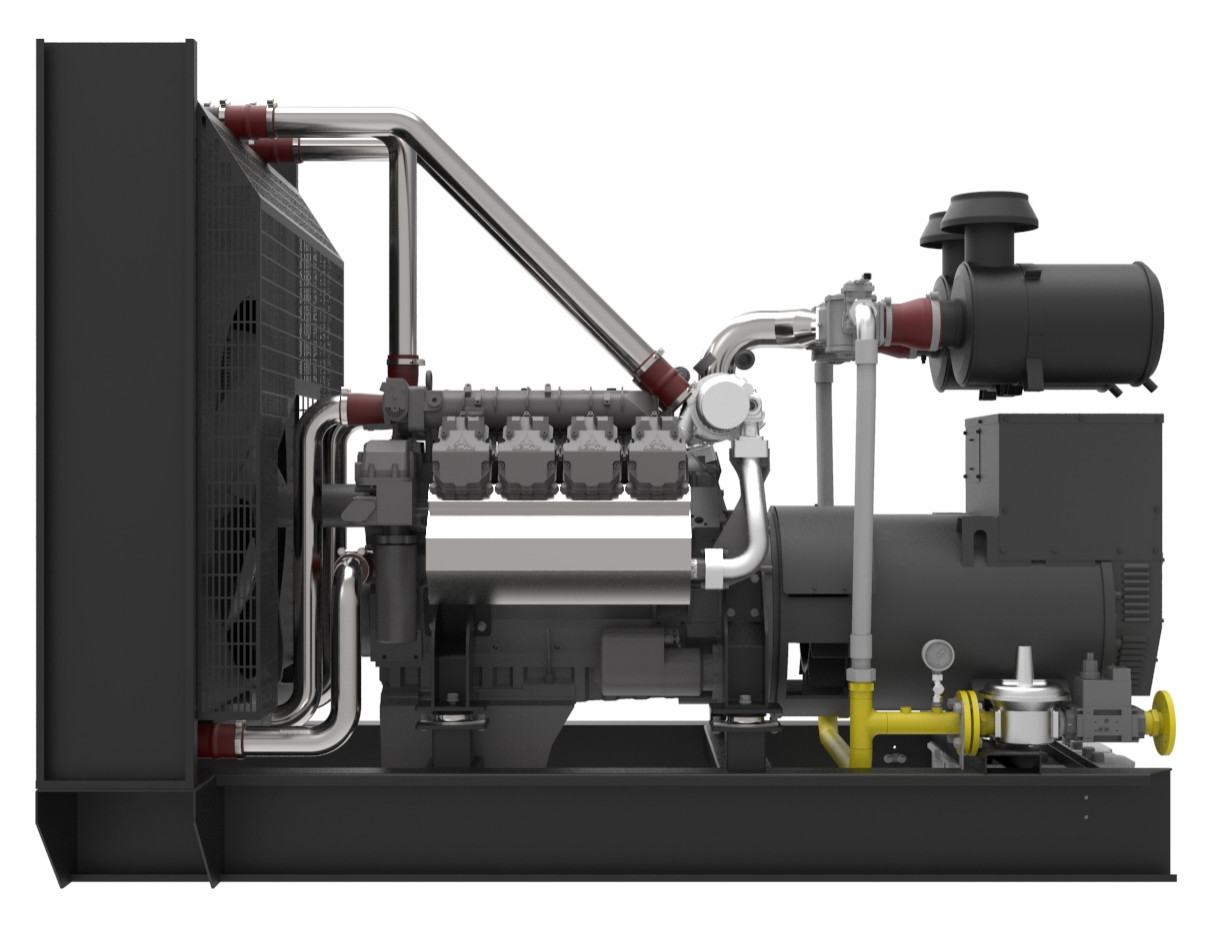

Deutz V8 280 KW LPG Generator Set Combined Heat And Power Cogeneration
Deutz V8 280 KW LPG Generator Set Combined Heat And Power Cogeneration Deutz V8 280 KW LPG Generator Set Combined Heat And Power Cogeneration Deutz V8 280 KW LPG Generator Set Combined Heat And Power Cogeneration Deutz V8 280 KW LPG Generator Set Combined Heat And Power Cogeneration
Contact Now

Deutz V8 280 KW LPG Generator Set Combined Heat And Power Cogeneration

Minimum Order Quantity : 1 Sets Price : USD 49,000 - 56,000/Set
Packaging Details : Seaworthy Packing Delivery Time : 30 days
Supply Ability : 50 Pieces per Month
Place of Origin: China Brand Name: Starlight
Certification: ISO Model Number: 280 kW

Detail Information
Power: 200 KW Rated Voltage: 400/230V
Rated Current: 360A RPM: 1500/1800
Frequency: 50/60Hz
High Light:

steyr t12 Deutz V8 lpg generator set

,

steyr t12 CHP lpg generator set

,

steyr t12 280 kw generator

Product Description

280 kW LPG Propane Generator



Main configuration & Features



- Highly efficient gas engine
- AC Synchronous alternator
- Gas safety train and gas protection device against leakage
- Exhaust and jacket water ex-changer
- Heating water and jacket water circulation system
- Expansion tank and water jacket heater
- Advanced engine control system, including: ignition system, detonation control system, speed control system, air/fuel ratio control system
- Strict shop test for all generator sets
- Industrial silencer reduces the noise by 12-20dB (A)
- Unattached switch cabinet and electric control cabinet
- Multi-functional control system with easy operation
- Data communication interfaces integrated into control system
- Lighting and smoke alarm system
- Monitoring battery voltage and charging automatically
- Auto refilling oil system
- Bus interface for connecting to higher level control unit


FEATURES AT A GLANCE



Deutz V8 280 KW LPG Generator Set Combined Heat And Power Cogeneration 0

                                                                          AssemblyDeutz V8 280 KW LPG Generator Set Combined Heat And Power Cogeneration 1    Details

 Deutz V8 280 KW LPG Generator Set Combined Heat And Power Cogeneration 2

PRODUCT SPECIFICATIONS
SN
Description
Parameter
1
Engine Model
Deutz V8
2
RMP
1500 / 1800
3
Thermostat Opening Temperature
79℃, 87℃,Full Opening temperature 94℃,102℃
   4
Engine Exhaust Temperature
450-520℃
5
Intake System
Turbocharged, intercooled
6
Cooling system
Forced Water Cooling
7
Combustion type
Lean burn, closed loop control
8
Sparking Mode
Electrical controlled single cylinder independent
high-energy ignition
9
Lubricating System
Pressure splash lubrication
10
Engine Oil Temperature
≤108℃
11
Engine Oil Pressure
70-85psi
12
Engine Oil Consumption
≤0.3g/kWh

Engine Control System

The gas engine is controlled by close-loop lean burn managing system which includes single cylinder independent spark, electric speed regulation system, fuel close loop control system, environment adaptability system, automatic diagnosis and protection system to ensure precise and reliable operation of the engine in all working conditions. The systems satisfy all economical efficiency, power and emission requirements. Furthermore, according to the actual application situation, working conditions and exact fuel compositions, we optimized the whole engine and engine control system for its best performances.

Alternator

Mecc Alte ECO38 AC brushless synchronous alternator and specially designed motion parts are used to endure load shock and interference and ensure the equipment’s long term stability and reliability.
1
Model
ECO38-2LN4
2
Power Factor
0.8(lag)
3
Generating Efficiency
94.1%
4
Generator Capacity
300kVA/350kVA
5
Phase
Three Phase Four Wire
6
Insulation Grade
H
7
Protection Grade
IP23

Generator Set Control System

DEIF intelligent generator control system is used to achieve automatic start, accelerate, switching in, parallel operation, load automatic allocation, transferring, brake separating, cooling and halt. Remote control system is also available for distance monitor and control.
1
Model
DEIF AGC222 Series
2
Functions
One button start/stop, Data Display & Recording, Monitoring, Protection
3
Display
Rmp/water temperature/running hours/current/ voltage/active power/ wattless power/allocation proportion etc
4
Protection
High temperature, low lubricant pressure, over speed, overcurrent, voltage abnormal, short circuit control and alarming
