200KW LPG Gas Powered Generator CHP Generator Sets
200KW LPG Gas Powered Generator CHP Generator Sets 200KW LPG Gas Powered Generator CHP Generator Sets 200KW LPG Gas Powered Generator CHP Generator Sets
Contact Now

200KW LPG Gas Powered Generator CHP Generator Sets

Minimum Order Quantity : 1 Packaging Details : Seaworthy Packing
Delivery Time : 30 days Supply Ability : 50 Pieces per Month
Place of Origin: China Brand Name: Starlight
Certification: ISO Model Number: 200 kW

Detail Information
Power: 200 KW Rated Voltage: 400/230V
Rated Current: 360A RPM: 1500/1800
Frequency: 50/60Hz
High Light:

steyr t12 360A lpg gas powered generator

,

steyr t12 200KW lpg gas powered generator

,

steyr t12 ISO Chp Generator Sets

Product Description


200kW LPG Propane Generator Set


Main configuration & Features



- Highly efficient gas engine
- AC Synchronous alternator
- Gas safety train and gas protection device against leakage
- Exhaust and jacket water ex-changer
- Heating water and jacket water circulation system
- Expansion tank and water jacket heater
- Advanced engine control system, including: ignition system, detonation control system, speed control system, air/fuel ratio control system
- Strict shop test for all generator sets
- Industrial silencer reduces the noise by 12-20dB (A)
- Unattached switch cabinet and electric control cabinet
- Multi-functional control system with easy operation
- Data communication interfaces integrated into control system
- Lighting and smoke alarm system
- Monitoring battery voltage and charging automatically
- Auto refilling oil system
- Bus interface for connecting to higher level control unit

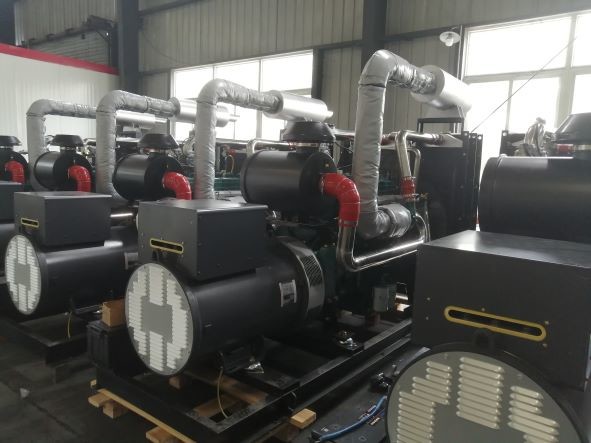

Factory at a Glance

200KW LPG Gas Powered Generator CHP Generator Sets 0

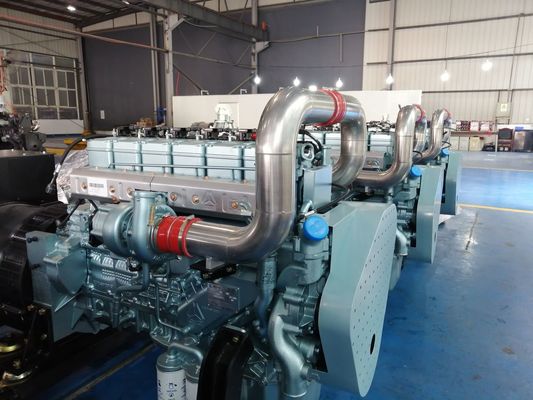

Assembly


200KW LPG Gas Powered Generator CHP Generator Sets 1

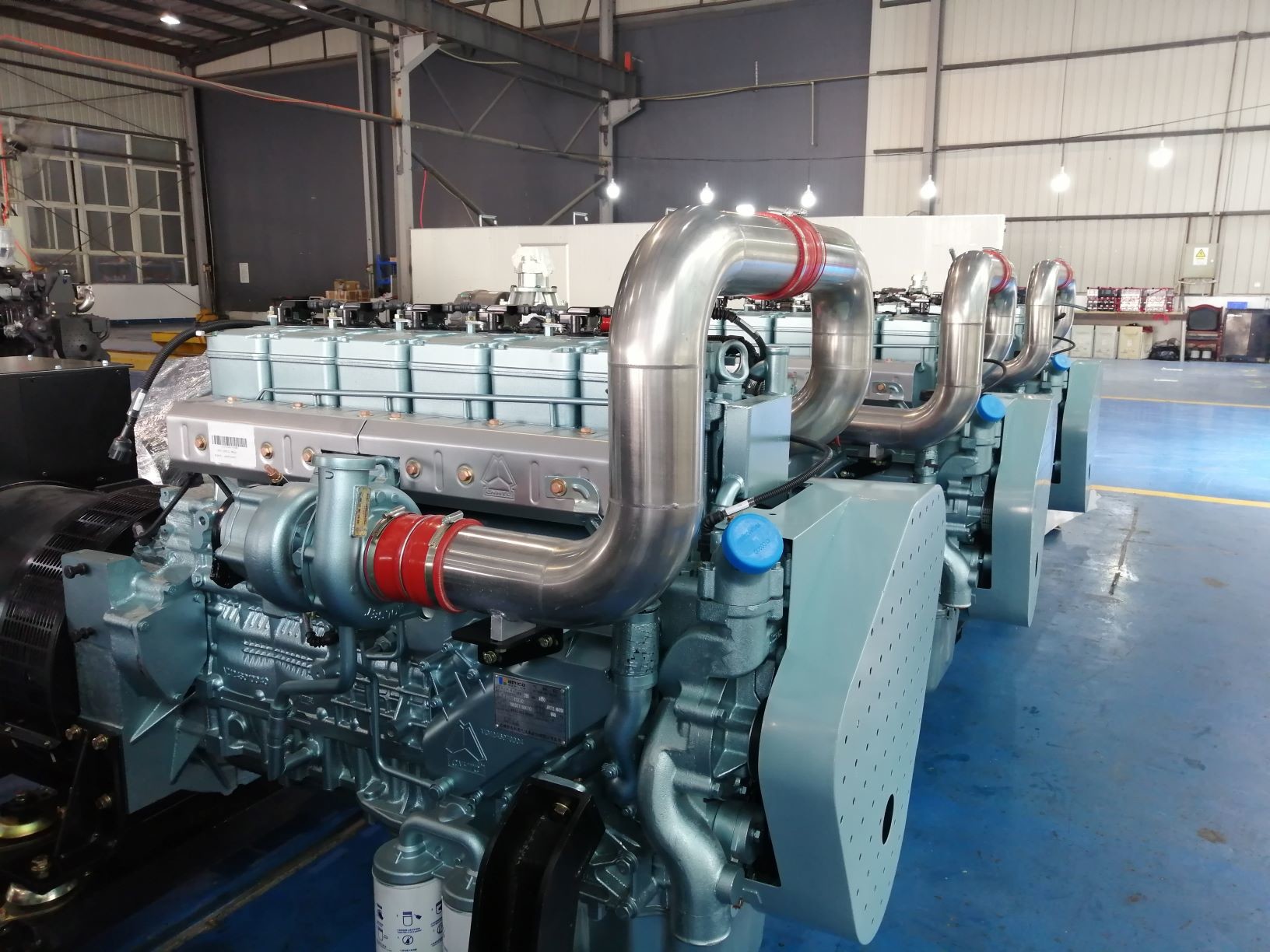

Workmanship



200KW LPG Gas Powered Generator CHP Generator Sets 2

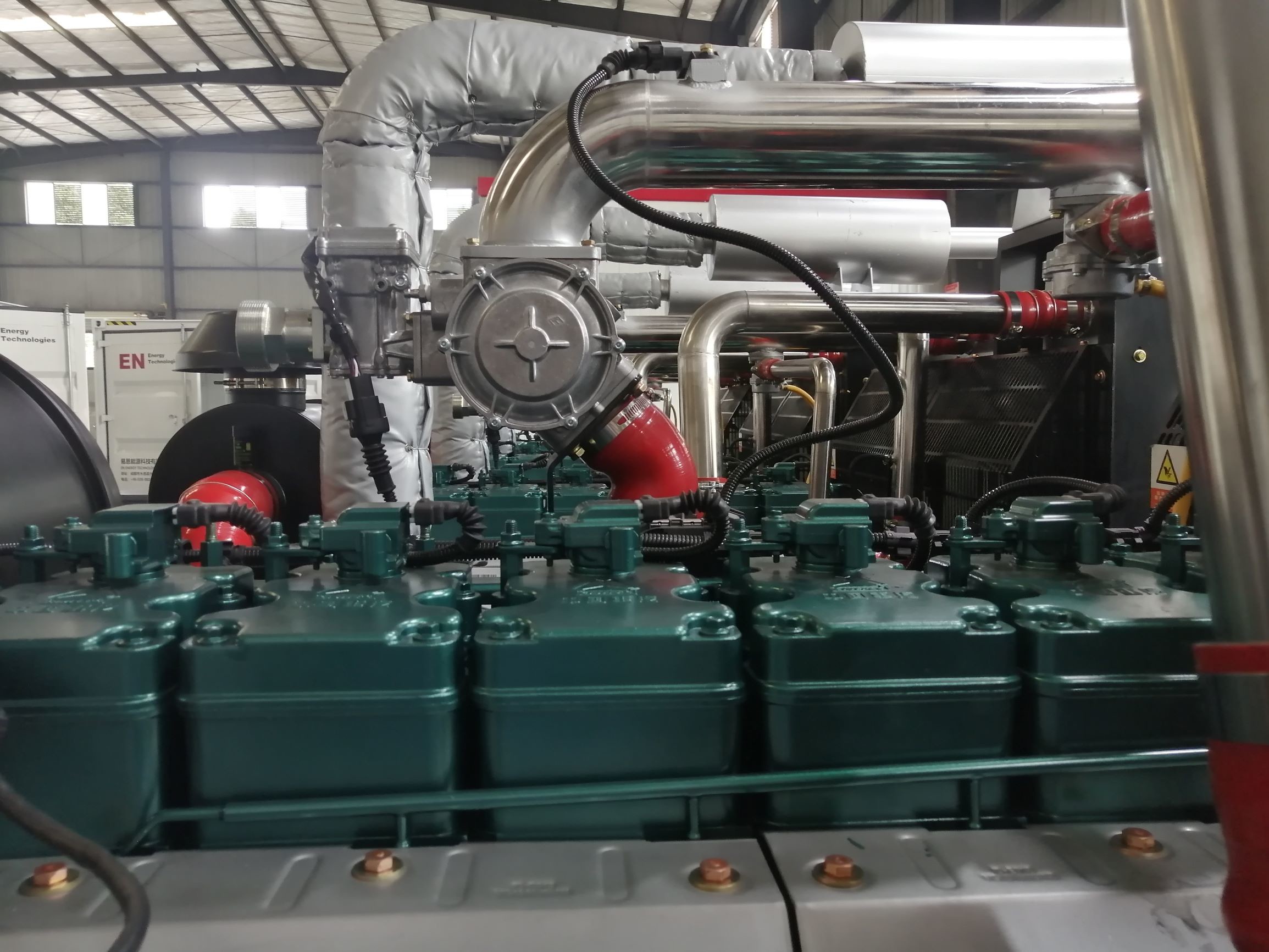

Workmanship

Equipment Sepecification

SN
Description
Parameter
1
Engine Model
Styr T12
2
RMP
1500 / 1800
3
Displacement
11.596L
4
Engine Rated Power
260/280 kW
5
Bore*Stroke
126x130
6
Pressure Ratio
11:1
7
Engine Type
L-type, 4-Stroke, 4-Valve, Water-cooling
8
Thermostat Opening Temperature
79℃, 87℃,Full Opening temperature 94℃,102℃
   9
Engine Exhaust Temperature
450-520℃
10
Intake System
Turbocharged, intercooled
11
Cooling system
Forced Water Cooling
12
Combustion type
Lean burn, closed loop control
13
Sparking Mode
Electrical controlled single cylinder independent
high-energy ignition
14
Lubricating System
Pressure splash lubrication
15
Engine Oil Temperature
≤108℃
16
Engine Oil Pressure
70-85psi
17
Engine Oil Consumption
≤0.3g/kWh

Engine Control System

The gas engine is controlled by close-loop lean burn managing system which includes single cylinder independent spark, electric speed regulation system, fuel close loop control system, environment adaptability system, automatic diagnosis and protection system to ensure precise and reliable operation of the engine in all working conditions. The systems satisfy all economical efficiency, power and emission requirements. Furthermore, according to the actual application situation, working conditions and exact fuel compositions, we optimized the whole engine and engine control system for its best performances.

Alternator

Mecc Alte ECO38 AC brushless synchronous alternator and specially designed motion parts are used to endure load shock and interference and ensure the equipment’s long term stability and reliability.

1
Model
ECO38-2LN4
2
Power Factor
0.8(lag)
3
Generating Efficiency
94.1%
4
Generator Capacity
300kVA/350kVA
5
Phase
Three Phase Four Wire
6
Insulation Grade
H
7
Protection Grade
IP23

Generator Set Control System

DEIF intelligent generator control system is used to achieve automatic start, accelerate, switching in, parallel operation, load automatic allocation, transferring, brake separating, cooling and halt. Remote control system is also available for distance monitor and control.

1
Model
DEIF AGC222 Series
2
Functions
One button start/stop, Data Display & Recording, Monitoring, Protection
3
Display
Rmp/water temperature/running hours/current/ voltage/active power/ wattless power/allocation proportion etc
4
Protection
High temperature, low lubricant pressure, over speed, overcurrent, voltage abnormal, short circuit control and alarming

SALES AND SERVICE NETWORK
200KW LPG Gas Powered Generator CHP Generator Sets 3
Successful Projects

200KW LPG Gas Powered Generator CHP Generator Sets 4

Project in Oil & Gas


200KW LPG Gas Powered Generator CHP Generator Sets 5



Bio-gas Power Generation Project



200KW LPG Gas Powered Generator CHP Generator Sets 6

Project in Russia
