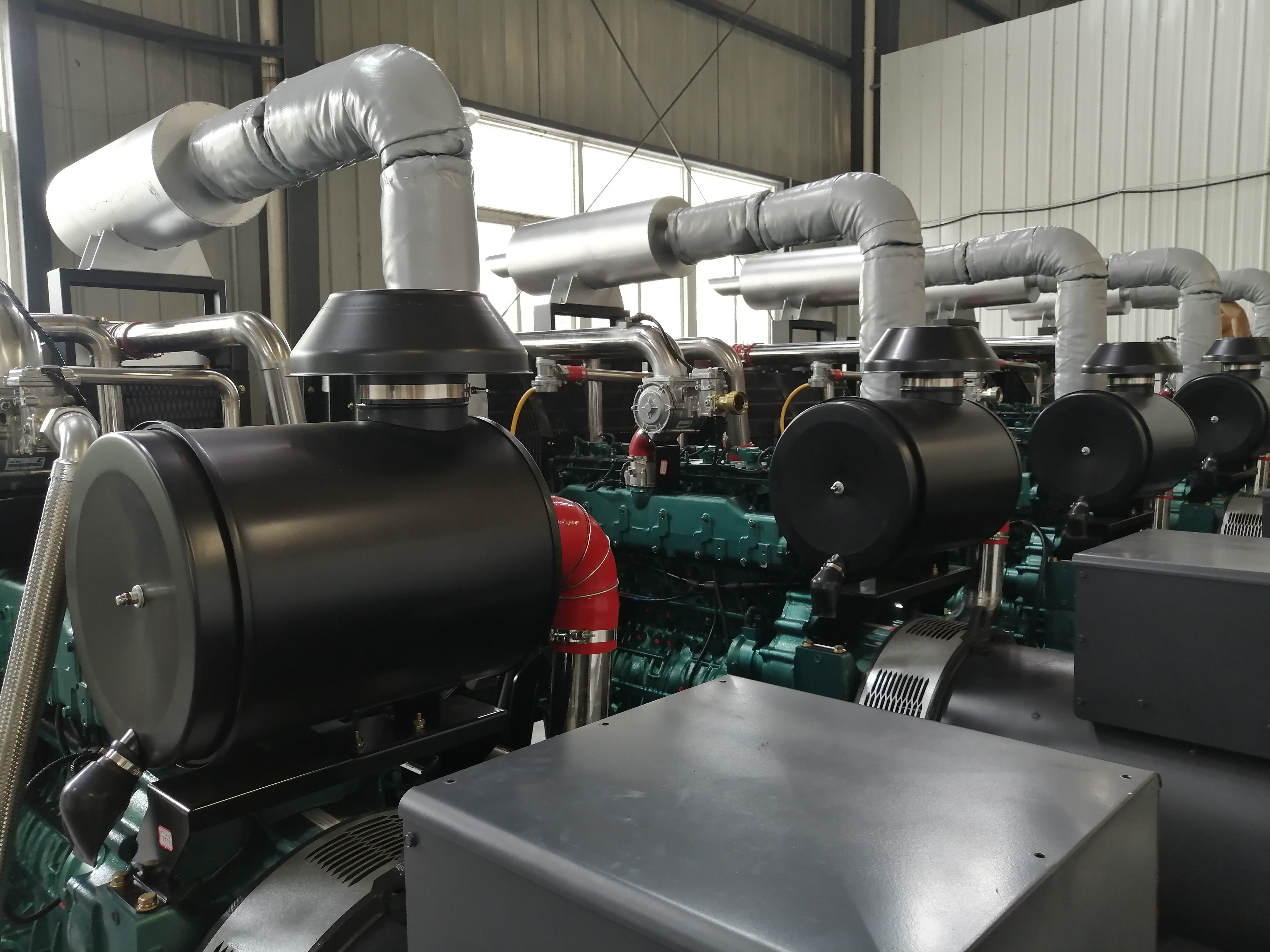

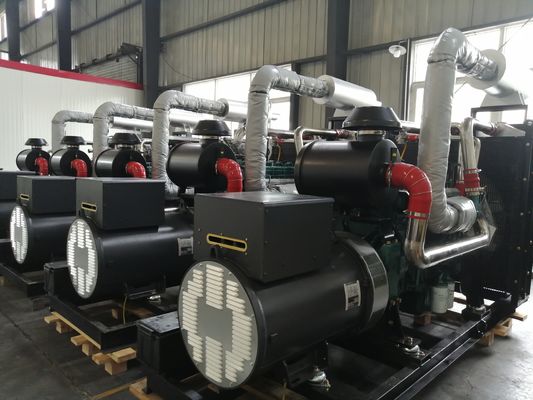

240KW Natural Gas LPG Propane Generator Biogas Power Generator

SN

Description

Parameter

1

Engine Model

Styr T12

2

RMP

1500 / 1800

3

Displacement

11.596L

4

Engine Rated Power

280 kW

5

Bore*Stroke

126x155

6

Pressure Ratio

11.5:1

7

Ignition Sequence

1-8-4-5-7-3-6-2

8

Engine Type

L-type, 4-Stroke, 4-Valve, Water-cooling

9

Thermostat Opening Temperature

79℃, 87℃,Full Opening temperature 94℃,102℃

10

Engine Exhaust Temperature

450-520℃

11

Intake System

Turbocharged, intercooled

12

Cooling system

Forced Water Cooling

13

Combustion type

Lean burn, closed loop control

14

Sparking Mode

Electrical controlled single cylinder independent

high-energy ignition

15

Lubricating System

Pressure splash lubrication

16

Engine Oil Temperature

≤108℃

17

Engine Oil Pressure

70-85psi

18

Engine Oil Consumption

≤0.3g/kWh

Model

ECO38-2LN4

2

Power Factor

0.8(lag)

3

Generating Efficiency

0.94%

4

Generator Capacity

300kVA/350kVA

5

Phase

Three Phase Four Wire

6

Insulation Grade

H

7

Protection Grade

IP23

1

Model

DEIF AGC222 Series

2

Functions

One button start/stop, Data Display & Recording, Monitoring, Protection

3

Display

Rmp/water temperature/running hours/current/ voltage/active power/ wattless power/allocation proportion etc

4

Protection

High temperature, low lubricant pressure, over speed, overcurrent, voltage abnormal, short circuit control and alarming
