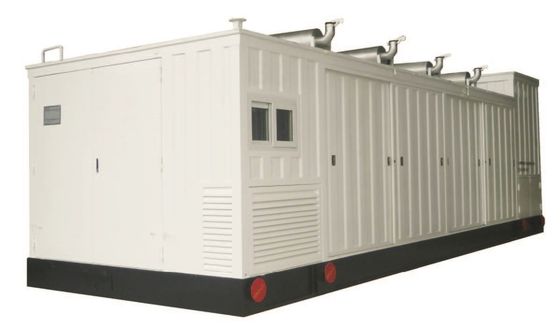

YuChai Diesel Engine Cogeneration Power Plant 1000KVA

Inter Cooler Water: Inter cooler water outlet temperature is around 50℃ which is not warm enough. In order to utilize inter cooler water, we let it into jacket water to utilize its energy.

High Temperature Jacket Water: Jacket water around 93℃ is led to heat exchanger as heat supply. User side water temperature can be set.

High Temperature Exhaust Gas: Jacket water is led to exhaust exchanger after coming from heat exchanger and absorb heat energy in in exhaust and it flows into engine. Tee-valve and radiator tank shall be installed to control the water temperature before entering engine (If heat is not fully utilized by user, the return water could be too warm for engine).

Hot Water Supply: After heating by high temperature flue gas, the hot water will heat user’s heat storage water tank or can be used for other purpose of hearing.

Hot water flow chart.

SinoTruck T10 gas engine is selected. The gas engine is deeply developed in fuel control systems to improve its electric efficiency, reliability and fuel adaptivity for certain working conditions.The development also give consideration for dynamic responsiveness, fuel economy, reliability and safety.

Proven gas engine is controlled by imported gas close-loop lean-burn control system which includes high energy ignition system, gas-exclusive speed regulator, fuel flow rate control valve, variable Venturi mixture. The system is also optimized by our company to achieve high reliability and efficiency.
