| Minimum Order Quantity : | 1 Set | Price : | As per technical requirements. |
|---|---|---|---|
| Packaging Details : | Sea worthy packing | Delivery Time : | 15 days |
| Place of Origin: | China | Brand Name: | Starlight |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | 1000KVA |
|
Detail Information |
|||
| Color: | Grey | Application: | Power Generation |
|---|---|---|---|
| Brand: | Baudouin WeiChai | Alternator: | Kwise |
| Highlight: | Grey WeiChai Diesel Generator,1000KVA WeiChai Diesel Generator,Kwise Alternator Industrial Diesel Generator |
||
Product Description

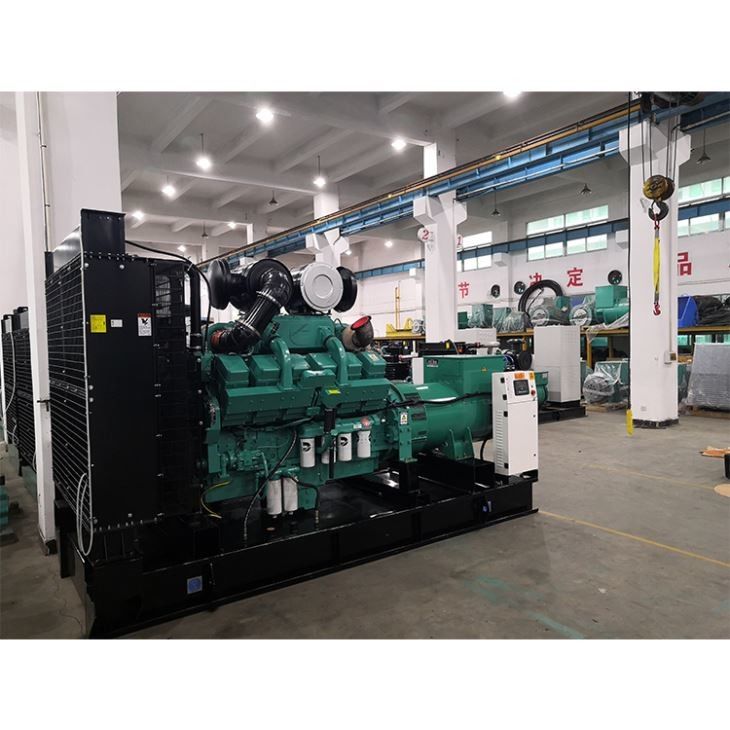

1000KVA Diesel Generator WeiChai Baudouin
Technical Specification for WeiChai Series 1000KVA Diesel Generator
| Diesel Generator | |||||||||
| Generator Model | QJ2-800WC | ||||||||
| Output Power | 800KW | Fluctuation Ratio | ≤ 1％ | ||||||
| Rated Voltage | 400V/230V | Steady state frequency regulation | ≤ 1％ | ||||||
| Frequency | 50HZ | Frequency stabilization time | ≤ 3 Ｓ | ||||||
| Electric System | 3-phase 4-wire | Transient frequency adjustment rate | ≤ 1％ | ||||||
| Rated Current | 1584A | Fluctuation Ratio | ≤ 1％ | ||||||
| Power Factor | 0.8 (lag) | Weight | 7500Kg | ||||||
| Steady state voltage regulation rate | ≤±1% | Rpm | 1500r/min | ||||||
| Transient voltage regulation rate | -15%～+18％ | Dimensions L*W*H | 4500*1700*2250(mm) | ||||||
| Voltage Recover Time | ≤ 1Ｓ | Cooling Mode | Close Water Cooling | ||||||
| Fuel | 0# Light Diesel | Noise (LP7M) | 114dB(A) | ||||||
| Diesel Engine | |||||||||
| Manufacturer | WeiChai | Brand | WeiChai, Baudouin | ||||||
| Output Power | 968KW | Model | 12M6D968E200 | ||||||
| Cylinder Number | 12 | Pressure Ratio | 15.0:1 | ||||||
| Bore / Distance | 150×150 | Start Mode | Electrical | ||||||
| Fuel Consumption | ≤198g/kw.h | Start Power | DC 24V | ||||||
| Displacement | 31.8L | Speed Regulation | Electronic | ||||||
| Ambient Temperature | -10℃～40℃ | Inspiration | Turbocharging, inter-cooler | ||||||
| Cylinder Arrangement | V Type, 12 Cylinder | Emission Limit | None Road National III Stage | ||||||
| Alternator | |||||||||
| Brand | KWISE | Model | S404G800D1(800KW) | ||||||
| Exciting Mode | Brushless Self excitation | IP Grade | IP22 | ||||||
| AVR Automatic Voltage Regulating | Short time Over-current | 3～5 Ie No less than 5S | |||||||
| Insulation Grade | H | Over Load Capacity | 1.5Ie No less than 2min | ||||||
| Winding Material | 99.99% Copper | Phase & Wiring | Three Phase, Four Wire | ||||||
